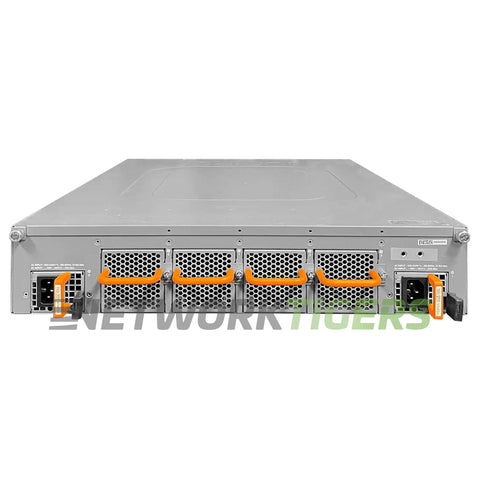

NEW Juniper QFX5210-64C-AFO 64x 100GB QSFP28 F-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

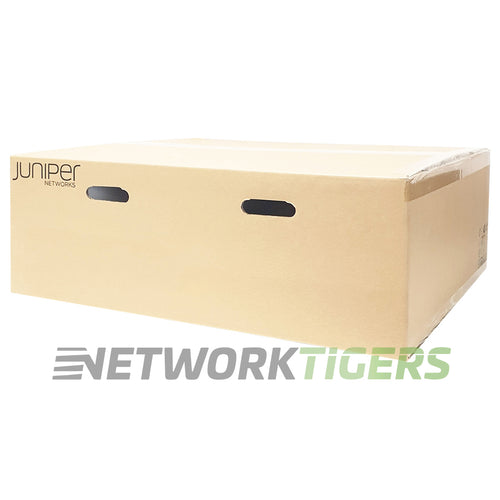

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3636

Overview

The NEW Juniper QFX5210-64C-AFO is a high-performance switch with 64 ports of 100GB QSFP28 F-B airflow. It offers a switching capacity of up to 12.8 Tbps (bi-directional) and a forwarding rate of up to 4.2 Bpps, making it suitable for demanding networking environments.

The MAC address table size is impressive at 264,000 entries, ensuring efficient handling of network traffic. With its robust capabilities and reliable performance, the Juniper QFX5210-64C-AFO is designed to meet modern data centers requiring fast and scalable connectivity solutions.

This switch provides an essential foundation for building resilient networks supporting growing bandwidth demands without compromising reliability or speed.

NEW Juniper QFX5210-64C-AFO 64x 100GB QSFP28 F-B Airflow Switch


Specifications

  • Network Ports : 64x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Management, 1x USB
  • Switch Version : Junos OS
  • System Memory : 16 GB DDR4, 100 GB SSD storage.
  • AirFlow Direction : Front to Back Airflow
  • Fan Modules : 5x QFX5210-FANAFO - Front to Back Airflow
  • Power Supplies : 2x JPSU-1100W-AC-AFO Power Supplies - Front to Back Airflow
  • Switching Capacity : Up to 12.8 Tbps (bi-directional)
  • Forwarding Rate : Up to 4.2 Bpps
  • MAC Address Table Size : 264,000
  • VLANs Supported : 4096 (3 VLANs reserved for internal use)
  • Packet Buffer : 42 MB
  • CPU : Intel Broadwell-DE, 4 Core, 2.2 GHz CPU
  • Model Number : QFX5210-64C-AFO
  • Part Number : QFX5210-64C-AFO
  • Condition : New


Included

  • One (1) NEW Juniper QFX5210-64C-AFO 64x 100 QSFP28 Front to Back Airflow Switch as described above
