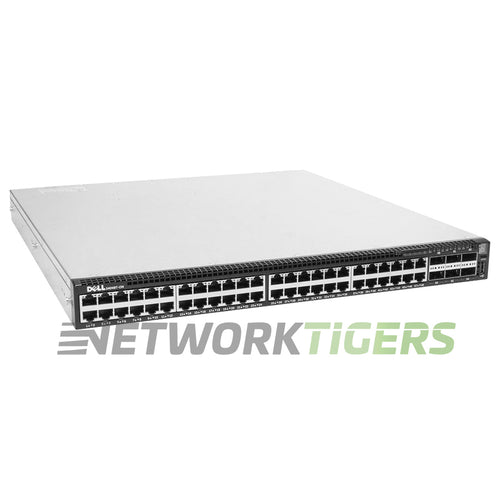

Dell S4048T-ON 210-AHMR 48x 10GB Copper 6x 40GB QSFP+ F-B Air OS10 Switch

Dell S4048T-ON 210-AHMR 48x 10GB Copper 6x 40GB QSFP+ F-B Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-0132
UPC: 11110530110

Overview

The Dell S4048T-ON 210-AHMR is a high-performance switch designed for data centers and enterprise networks. Its 48x 10GB copper ports and 6x 40GB QSFP+ ports offer fast connectivity options for various devices.

Featuring a switching capacity of up to 1.44 Tbps and a Forwarding Rate of 1080 Mpps, this switch can easily handle heavy network traffic. It also has an impressive MAC Address Table Size of 160,000 entries, allowing efficient management of connected devices.

With low latency at only 2.8 us, the Dell S4048T-ON provides near-instantaneous response times for time-sensitive applications or services.

Dell S4048T-ON: 48x 10GBASE-T, 6x QSFP+, 2x AC PSU, 2x fans, Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow). Includes OS10.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ-45
  • Uplink Ports : 6x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ-45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : Includes OS10
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
  • Fan Module Options : 4x Fan Module Included (X382X)
  • Power Supplies Included : 1x WGY36 AC Power Supply Included - 2x PSU Slots
  • Alternative Dell Part Numbers : 210-AHMR, 0DC9DH, DC9DH, 63CXN
  • Switching Capacity : 1.44Tbps
  • Forwarding Rate : 1080 Mpps
  • MAC Address Table Size : 160,000
  • Latency : 2.8 us
  • Model Number : S4048T-ON
  • Part Number : S4048T-ON, 210-AHMR, 0DC9DH, DC9DH, 63CXN
  • Condition : Seller refurbished

Datasheet

More information on this Dell S4048T-ON.

Included

  • One (1) Seller Refurbished Dell S4048T-ON 210-AHMR 48x 10GB Copper 6x 40GB QSFP+ F-B Air OS10 Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Four (4) Fan Module Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Rails Not Included
