NEW Dell S4148F-ON 210-ALSI 48x SFP+ 4x QSFP28 2x QSFP+ F-B Air OS10 Switch
New

NEW Dell S4148F-ON 210-ALSI 48x SFP+ 4x QSFP28 2x QSFP+ F-B Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1906
UPC: 011110659590

Overview

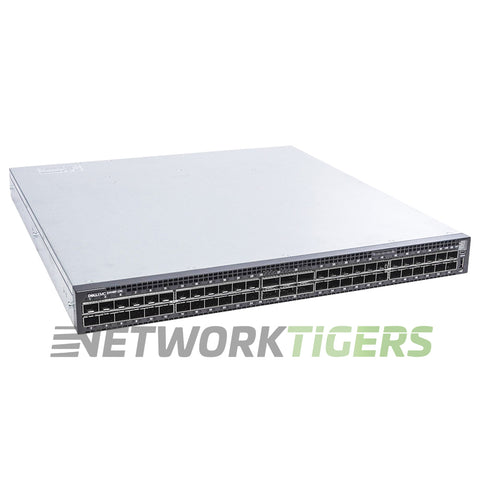

The Dell S4148F-ON switch is a high-performance solution for demanding networking environments. With 48x SFP+ ports, 4x QSFP28 ports, and 2x QSFP+ uplink ports, this switch offers plenty of connectivity options.

The Switching Capacity of 960 Gbps ensures fast data transfer speeds, while the Forwarding Rate of 720 Mpps helps maintain efficient network performance. The MAC Address Table Size of 272,000 allows for seamless communication between devices on the network.

With a low Latency rate of only 800 nanoseconds, users can experience minimal delays in data transmission. The Dell S4148F-ON is a reliable choice for businesses looking to enhance their network capabilities without sacrificing speed or reliability.

Dell S4148F-ON: 48x 10GbE SFP+, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow). Includes OS10 Licence.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit QSFP28
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Firmware Version : Includes OS10 Licence
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - I/O Panel to PSU Airflow
  • Power Supplies Included : 2x AC PSU's Included - I/O Panel to PSU Airflow
  • Alternative Dell Part Numbers : 210-ALSI
  • Switching Capacity : 960 Gbps
  • Forwarding Rate : 720 Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Rack Mounts : Not Included - 770-BBGY Rail Kit can be ordered separately.
  • Model Number : S4148F-ON
  • Part Number : S4148F-ON, 210-ALSI
  • Condition : New


Included

  • One (1) NEW Dell S4148F-ON 210-ALSI 48x SFP+ 4x QSFP28 2x QSFP+ F-B Air OS10 Switch as described above
