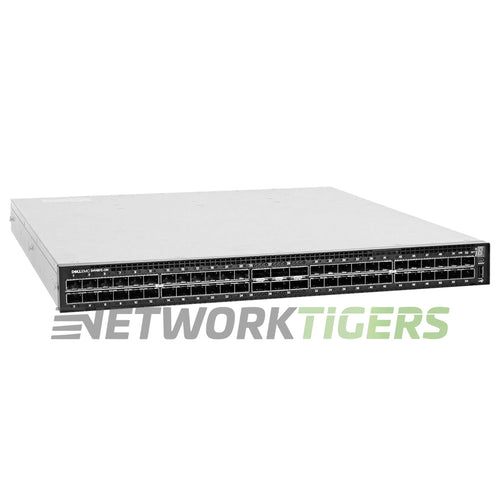

Dell S4148FE-ON 48x 10GB SFP+ 2x 40GB QSFP+ 4x 100GB QSFP28 F-B Air OS10 Switch

Dell S4148FE-ON 48x 10GB SFP+ 2x 40GB QSFP+ 4x 100GB QSFP28 F-B Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9213

Overview

The Dell S4148FE-ON is a 1U rack-mounted switch featuring 48x10GbE SFP+ ports, two QSFP+ (40Gbps), and four QSFP28 (100Gbps) uplinks. It delivers a switching capacity of 1.76 Tbps with forwarding rates up to 1320 Mpps for high-speed data transfer across large networks.

The MAC address table supports up to 272,000 entries, making it suitable for handling extensive Layer 2 addressing needs in scalable deployments. This model operates with latency as low as approximately 850 nanoseconds, meeting the requirements for time-sensitive operations common in network virtualization or storage applications.

Dell S4148FE-ON: 48x 10GbE SFP+, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fans. Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow). Includes OS10.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : Includes OS10
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
  • Fan Module Options : 4x Fan Module Included
  • Power Supplies Included : 2x AC PSU
  • Alternative Dell Part Numbers : 210-ALSG
  • Switching Capacity : 1.76 Tbps
  • Forwarding Rate : 1320 Mpps
  • MAC Address Table Size : 272,000
  • Latency : 850 nanoseconds
  • Model Number : S4148FE-ON
  • Part Number : S4148FE-ON, 210-ALSG
  • Condition : Seller refurbished

Datasheet

More information on this Dell S4148FE-ON.

Included

  • One (1) Seller Refurbished Dell S4148FE-ON 48x 10GB SFP+ 2x 40GB QSFP+ 4x 100GB QSFP28 F-B Air OS10 Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
