NEW Dell S4148T-ON 48x 10GB Copper 2x 40GB QSFP+ 4x 100GB QSFP28 F-B OS10 Switch
New

NEW Dell S4148T-ON 48x 10GB Copper 2x 40GB QSFP+ 4x 100GB QSFP28 F-B OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1907
UPC: 011110566591

Overview

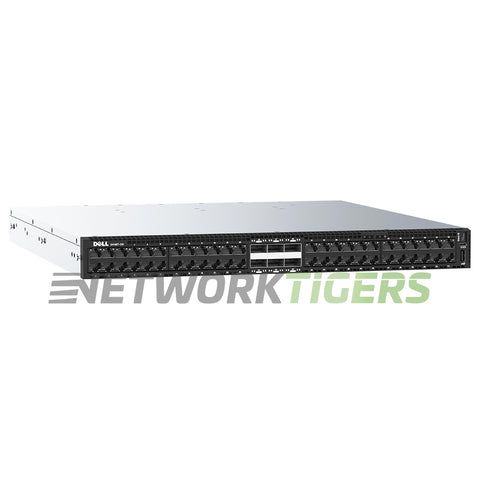

The Dell S4148T-ON switch is a high-performance networking solution with 48x 10GB copper ports, 2x 40GB QSFP+ uplink ports, and 4x100GB QSFP28 fabric ports. This model features PoE budget support for powering connected devices. The switching capacity of the switch is rated at an impressive 1.76Tbps with a forwarding rate of 1320Mpps.

It boasts a MAC address table size of 272,000 entries and offers low latency at just 800 nanoseconds. This Dell switch provides reliable connectivity for medium to large-scale networks without sacrificing performance or efficiency. With its versatile port configurations and robust hardware specifications, it can effectively handle heavy network traffic while maintaining stable operations in various deployment scenarios.

Dell S4148T-ON: 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, I/O Panel to PSU Airflow. OS10 is included.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ45
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : OS10
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal Airflow)
  • Fan Module Options : 4x Fan Modules Included
  • Power Supplies Included : 2x AC PSU's Included
  • Switching Capacity : 1.76 Tbps
  • Forwarding Rate : 1320 Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Alternative Dell Part Numbers : 210-ALSV
  • Model Number : S4148T-ON
  • Part Number : S4148T-ON, 210-ALSV
  • Condition : New


Included

  • One (1) NEW Dell S4148T-ON 48x 10GB Copper 2x 40GB QSFP+ 4x 100GB QSFP28 F-B OS10 Switch as described above
