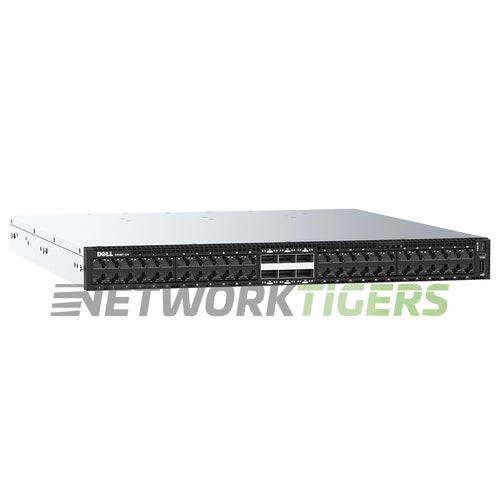

The Dell S4148T-ON-RA switch is a high-performance networking solution designed for data centers and enterprise environments. With 48x 10GB copper ports, 2x 40GB QSFP+ ports, and 4x QSFP28 back-to-front airflow, it offers versatile connectivity options to meet various network demands.
This switch features a 1.76 Tbps switching capacity and has a forwarding rate of up to 1320 Mpps, ensuring efficient data transfer across the network. The MAC address table size of 272000 allows seamless communication between devices.
With its low latency of only 800 nanoseconds, this device guarantees fast response times critical in demanding applications. Communication will be swift with little delay or lag when using multiple connected devices at the same time.
Dell S4148T-ON: 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, PSU to I/O Panel Airflow. OS10 is NOT included.
- Network Ports : 48x 10 Gigabit Ethernet RJ-45
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ-45 Console Management (RS232), 1x USB, 1x Mini USB
- Product Family : EMC S-Series
- Alternative Dell Part Numbers : 210-ALSV, S4148T-ON RA, S4148T-ON-RA
- Switch Version : OS10 - Not Included
- AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
- Fan Module Options : 4x Fan Modules Included
- Power Supplies Included : 2x AC PSU's Included
- Switching Capacity : 1.76 Tbps
- Forwarding Rate : 1320 Mpps
- MAC Address Table Size : 272,000
- Latency : 800 nanoseconds
- Model Number : S4148T-ON-RA
- Part Number : S4148T-ON-RA, 210-ALSV, S4148T-ON RA
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell S4148T-ON-RA 48x 10GB Copper 2x 40GB QSFP+ 4x QSFP28 B-F No OS10 Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
