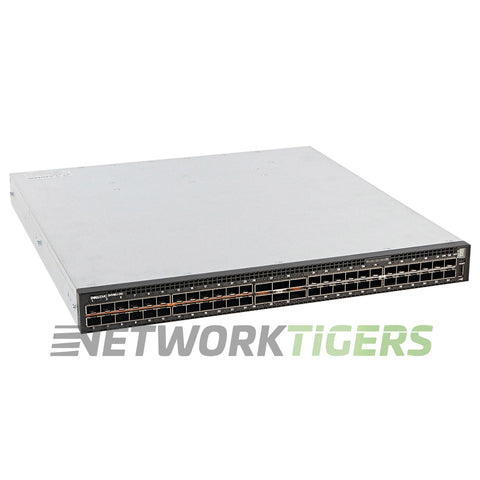

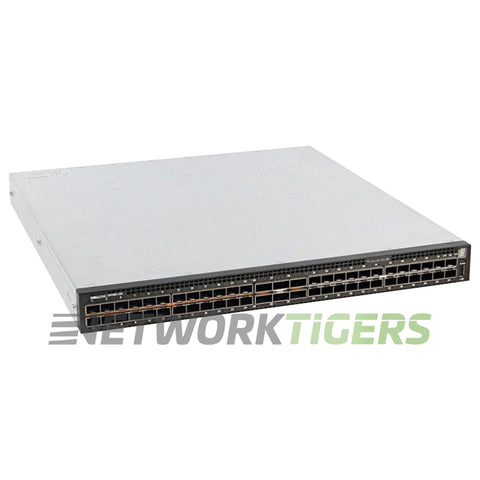

NEW Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F OS10 Switch
New

NEW Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8126

Overview

The NEW Dell S4148U-ON-RA switch offers high-performance networking capabilities with a switching capacity of 1.76 Tbps and a forwarding rate of 1320 Mpps. With a MAC address table size of 272,000 and low latency at just 800 nanoseconds, this switch is designed to support demanding network environments effectively.

The switch features 48x (24x unified) SFP+ ports and 2x QSFP+ and 4x QSFP28 B-F connectors for versatile connectivity options. This model comes equipped with PoE budget functionality for power over Ethernet deployments as well.

NEW Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F OS10 Switch


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+ (24x Unified SFP+, 24x 10G SFP+)
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : OS10 is included
  • AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Fan Module Options : 4x Fan Modules Included
  • Power Supplies Included : 2x AC PSU's Included
  • Switching Capacity : 1.76 Tbps
  • Forwarding Rate : 1320 Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Alternative Dell Part Numbers : 210-ALSD, S4148U-ON RA, S4148U-ON-RA
  • Model Number : S4148U-ON-RA
  • Part Number : S4148U-ON-RA, 210-ALSD, S4148U-ON RA
  • Condition : New

Datasheet

More information on this Dell S4148U-ON-RA.

Included

  • One (1) NEW Dell S4148U-ON-RA 48x (24x Unified) SFP+ 2x QSFP+ 4x QSFP28 B-F OS10 Switch as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
