The Dell S5048F-ON-RA switch offers a high-performance networking solution with 48x 25GB SFP+ and 6x 100GB QSFP28 ports. This switch has a capacity of 3.6Tbps and a forwarding rate of up to 2,678 Mpps, making it suitable for demanding environments. .
With a MAC address table size of 132,000, this switch can efficiently handle large network traffic. The Dell S5048F-ON-RA is perfect for businesses looking for reliable networking equipment, designed with back-to-front airflow for optimal cooling efficiency in data centers. Whether you need to expand your current network infrastructure or upgrade to higher-speed connections, this switch provides the performance and reliability you need at an affordable price point.

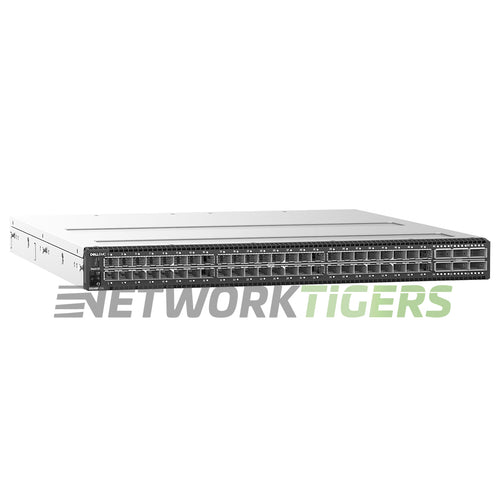

Dell S5048F-ON: 48x 25GbE SFP+, 6x 100GbE QSFP28, 2x AC PSU, 4x Fans, PSU to I/O Panel Airflow.
- Network Ports : 48x 25 Gigabit Ethernet SFP28
- Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ45 Console Management, 1x Micro USB, 1x Gigabit Ethernet Management, 1x USB Type A
- Switch Version : OS9
- AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
- Fan Module Options : 4x Fan Modules Included
- Power Supplies Included : 2x Hot Swappable Dual Redundant Power Supplies
- Switching Capacity : 3.6Tbps
- Forwarding Rate : Up to 2,678 Mpps
- MAC Address Table Size : 132,000
- Alternative Dell Part Numbers : S5048F-ON-RA, S5048F-ON RA
- Model Number : S5048F-ON-RA
- Part Number : S5048F-ON-RA, S5048F-ON RA
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell S5048F-ON-RA 48x 25GB SFP+ 6x 100GB QSFP28 Back-to-Front Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- One (1) Fan Module Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Rails Not Included
