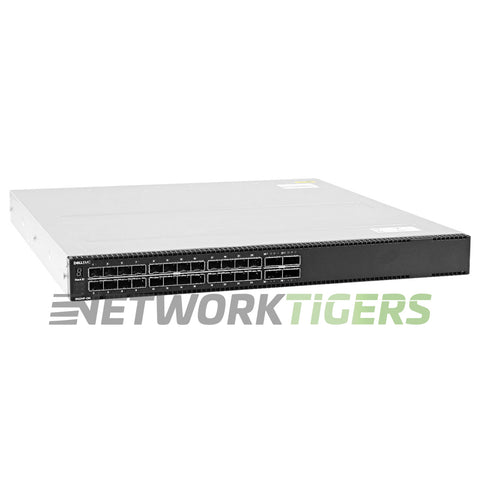

NEW Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 F-B Air No OS10 Switch
New

NEW Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 F-B Air No OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9948

Overview

The NEW Dell S5224F-ON Switch offers a high-capacity solution with 24x 25GB SFP28 ports and 4x 100GB QSFP28 uplink ports. With a switching capacity of 1.08Tbps and forwarding rate of 1488Mpps, this switch can handle large amounts of data traffic efficiently.

It has a MAC Address Table Size of 160,000 for robust network performance. This switch is designed for reliability as it operates without an OS10 system to reduce potential software issues. The low latency (881) ensures fast response times in data transmission.

Perfect for businesses requiring high-speed connectivity, the Dell S5224F-ON Switch provides powerful networking capabilities suitable for various applications and environments.

NEW Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 F-B Air No OS10 Switch


Specifications

  • Network Ports : 24x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1 RJ45 Console/Management with RS232 signaling
  • IPv6 Routes : 64K
  • IPv4 Routes : 128K
  • Multicast Hosts : 32K
  • Packet Buffer : 32MB
  • Switch Version : Does NOT include OS10
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal)
  • Fan Module Options : 4x Fan Modules
  • Power Supplies Included : 2x Hot Swappable Dual Redundant Power Supplies
  • SSD : 32GB
  • Switching Capacity : 1.08 Tbps (2.16Tbps full-duplex)
  • Forwarding Rate : 1488 Mpps
  • MAC Address Table Size : 160,000
  • Latency : 881 (nano sec)
  • CPU Memory : 16GB
  • Model Number : S5224F-ON
  • Part Number : S5224F-ON
  • Condition : New


Included

  • One (1) NEW Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 F-B Air No OS10 Switch as described above
