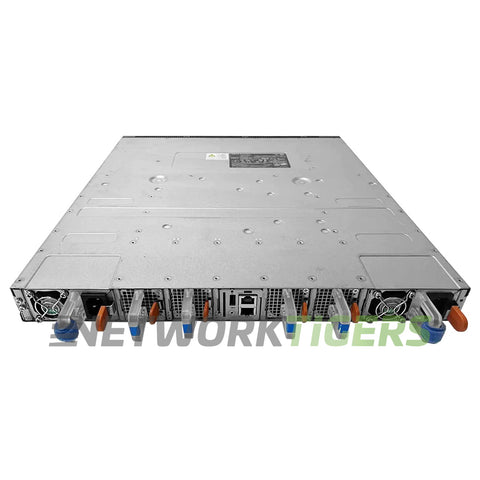

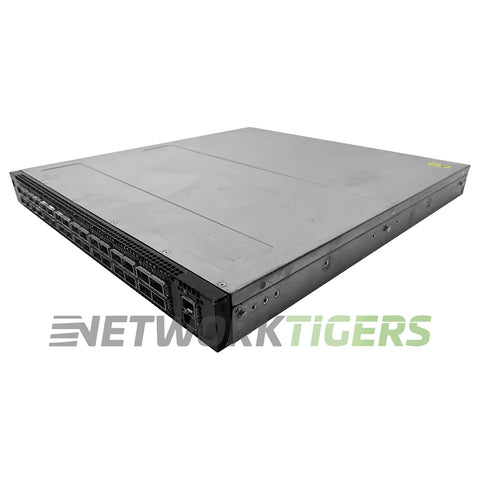

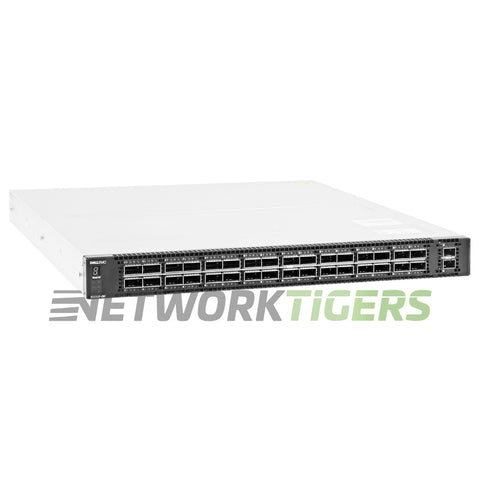

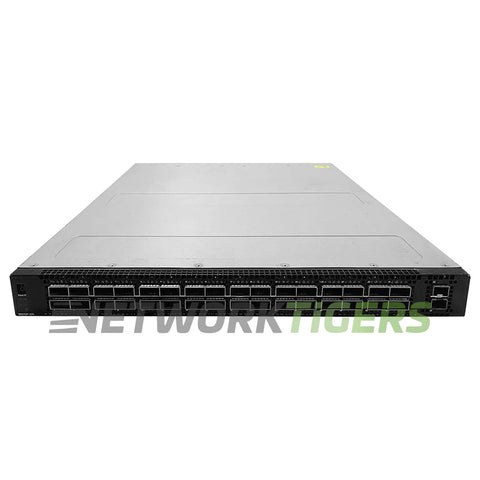

NEW Dell S5232F-ON-RA 32x 100GB QSFP28 2x 10GB SFP+ B-F Air No OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9943
UPC: 011110677839

Overview

The NEW Dell S5232F-ON-RA switch offers high-performance networking capabilities with a switching capacity of 3.2Tbps and a forwarding rate of 2.4Bpps. Featuring a MAC address table size of 160,000 and ultra-low latency at nanoseconds speed, this switch is ideal for demanding data center environments.

With its combination of 32x QSFP28 ports for high-speed connectivity and dual 10GB SFP+ uplinks, the Dell S5232F allows for efficient data transmission within your network setup. This switch does not come with an operating system installed but can easily integrate into existing setups to enhance network performance.

NEW Dell S5232F-ON-RA 32x 100GB QSFP28 2x 10GB SFP+ B-F Air No OS10 Switch


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Uplink Ports : 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x Gigabit Ethernet Management, 1x RJ45 Management, 1x USB
  • Switch Version : OS10 is NOT Included
  • AirFlow Direction : 4x Fan Modules Included - Back-to-Front Airflow - PSU to I/O Panel Airflow (Reversed)
  • Fan Modules : 4x Fan Modules Included
  • Power Supplies : 2x AC PSU's Included
  • Switching Capacity : 3.2Tbps
  • Forwarding Rate : 2.4Bpps
  • MAC Address Table Size : 160,000
  • Packet Buffer : 32MB
  • Latency : 877 nanoseconds
  • CPU : CPU Memory is 16GB
  • Model Number : S5232F-ON-RA
  • Part Number : S5232F-ON-RA, S5232F-ON RA
  • Condition : New


Included

  • One (1) NEW Dell S5232F-ON-RA 32x 100GB QSFP28 2x 10GB SFP+ B-F Air No OS10 Switch as described above
