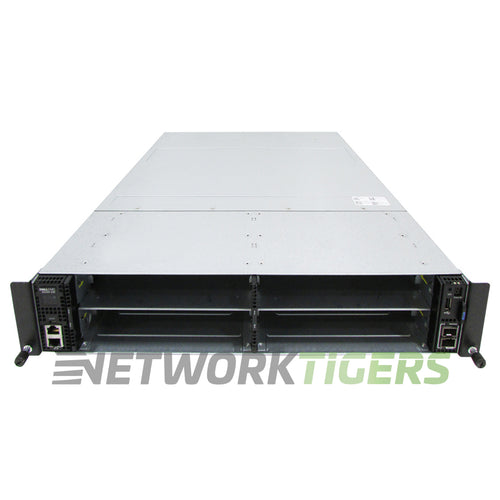

The Dell S6100-ON 210-AFWW switch features a switching capacity of 6.4Tbps and a forwarding rate of up to 4400 Mpps (Full Duplex). With a MAC Address Table Size 160,000, this switch offers efficient data processing capabilities. It boasts low latency with L2 at just 300ns and L3 at only 400ns for fast packet delivery.
Equipped with four module slots and two 10GB SFP+ ports supporting Front-to-Back Airflow design, this switch is designed to effectively handle high volumes of network traffic. The Dell S6100-ON switch is suitable for various networking applications that require high performance and reliable connectivity capabilities. It is an ideal switch for demanding network environments where speed, reliability, and scalability are essential for achieving optimal functionality.
Dell S6100-ON: S6100-ON, 4 slots, 2xSFP+, Front-to-Back Airflow (IO to PSU Airflow / Normal Airflow), 2x AC PSU, OS 9.
- Network Ports : 2x 10 Gigabit Ethernet SFP+
- Product Family : EMC S-Series
- Management Ports : 1x RJ45 Console/Management with RS232 signaling, 1x Gigabit Management, 1x USB 2.0, 1x Micro USB
- 4x Expansion Module Slots (Modules Not Included) - Following I/O modules are supported in each empty slot : 16x40GE QSFP+ I/O module, 8x100GE QSFP28 I/O module, 4x100GE CXP and 4x 100GE QSFP28 IO module
- Switch Version : OS 9
- AirFlow Direction : Front-to-Back Airflow (IO to PSU Airflow / Normal Airflow)
- Fan Module Options : 5x Fan Subsys
- Power Supplies Included : 2x Hot Swappable AC Power Supplies Included
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : Up to 4400 Mpps (Full Duplex)
- MAC Address Table Size : 160,000
- Latency : L2 - 300ns, L3 - 400ns
- Model Number : S6100-ON
- Part Number : S6100-ON, 210-AFWW
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell S6100-ON 210-AFWW 4x Module Slot 2x 10GB SFP+ Front-to-Back Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
