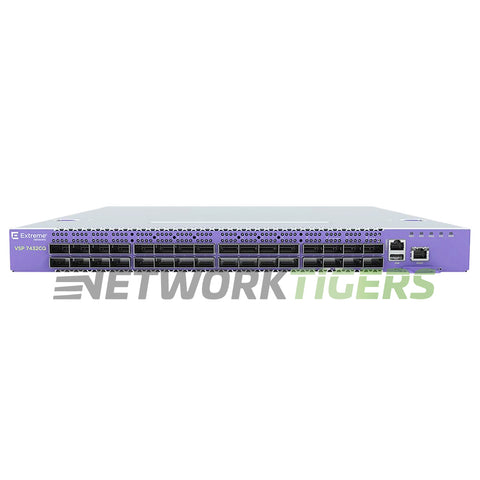

NEW Extreme VSP7400-32C-AC-F VSP 7432CQ-F 32x 100G QSFP28 F-B Airflow Switch
New

NEW Extreme VSP7400-32C-AC-F VSP 7432CQ-F 32x 100G QSFP28 F-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3548
UPC: 644728042180

Overview

The NEW Extreme VSP7400-32C-AC-F VSP 7432CQ-F switch is equipped with a powerful RAM of 16GB and a switching capacity of 6.4 Tbps, making it suitable for high-performance networking environments. It features a MAC address table size of up to 160,000 entries and offers low latency for efficient data transfer.

The built-in PoE budget allows for easy integration of powered devices, maximizing connectivity options within the network infrastructure. With its 128GB SSD hard drive, this switch ensures fast write speeds and reliable performance in demanding setups where large amounts of data need to be processed efficiently.

NEW Extreme VSP7400-32C-AC-F VSP 7432CQ-F 32x 100G QSFP28 F-B Airflow Switch


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Micro USB (Type A) Storage, 1x Serial Console RJ45, 1x Out of Band Management
  • System Memory : 16GB RAM (DDR4 ECC)
  • AirFlow Direction : Front to Back Airflow
  • Fan Modules : 1x Fan Tray (6x Fans) Front to Back Airflow
  • Power Supplies : 1x XN-ACPWR-750W-F 750W AC Power Supply - Front to Back Airflow Included - 2x Slots - 2nd Power Supply ordered separately. (1+1 Redundancy)
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 2,000 Mpps
  • MAC Address Table Size : 160,000
  • VLANs Supported : 4059 (Port Based VLAN's)
  • Hard Drive : 128GB SSD
  • CPU : 8-Core
  • Model Number : VSP7400-32C-AC-F
  • Part Number : VSP7400-32C-AC-F
  • Condition : New


Included

  • One (1) NEW Extreme VSP7400-32C-AC-F VSP 7432CQ-F 32x 100G QSFP28 F-B Airflow Switch as described above
