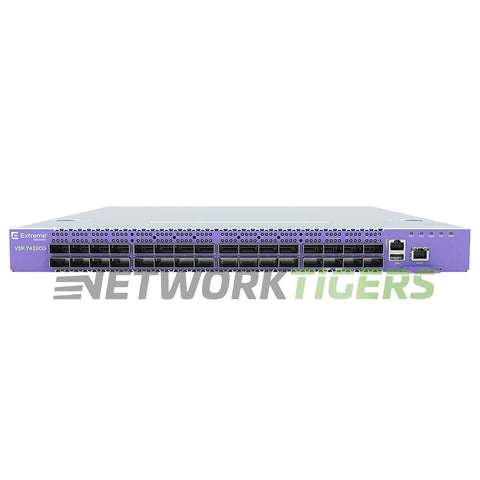

NEW Extreme VSP7400-32C VSP 7432CQ 32x 100G QSFP28 No Fans PSU Switch
New

NEW Extreme VSP7400-32C VSP 7432CQ 32x 100G QSFP28 No Fans PSU Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3547
UPC: 644728042180

Overview

The NEW Extreme VSP7400-32C switch offers high performance with a switching capacity of 6.4 Tbps and a MAC address table size of up to 160,000 entries. This model is equipped with 32x QSFP28 ports for high-speed connectivity, making it ideal for network environments that require fast data transfer rates.

The VSP7432CQ also features a PoE budget sufficient to power multiple devices simultaneously without compromising performance. With its solid-state drive storage option and generous RAM capacity of 16GB, this switch can handle large amounts of data efficiently while maintaining low latency levels across the network.

NEW Extreme VSP7400-32C VSP 7432CQ 32x 100G QSFP28 No Fans PSU Switch


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Micro USB (Type A) Storage, 1x Serial Console RJ45, 1x Out of Band Management
  • System Memory : 16GB RAM (DDR4 ECC)
  • AirFlow Direction : Depends on PSU and Fan configuration (See Below)
  • Fan Modules : Not Included - 6x Slots (Hot Swappable) (5 + 1 redundancy)
  • Power Supplies : Not Included - 2x Slots - Options are - 750 W AC PSU XN-ACPW R-750 W-F/ R or 750 W DC PSU XN-DCPW R-750 W-F/ R
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 2,000 Mpps
  • MAC Address Table Size : 160,000
  • VLANs Supported : 4059 (Port Based VLAN's)
  • Hard Drive : 128GB SSD
  • CPU : 8-Core
  • Model Number : VSP7400-32C
  • Part Number : VSP7400-32C
  • Condition : New


Included

  • One (1) NEW Extreme VSP7400-32C VSP 7432CQ 32x 100G QSFP28 No Fans PSU Switch as described above
