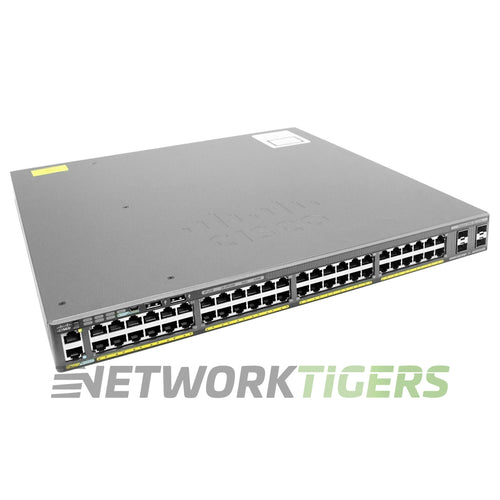

The Cisco WS-C2960XR-48LPS-I is a reliable network switch with high-performance capabilities. With 48x 1GB RJ-45 ports and 4x 1GB SFP ports, it provides flexibility for connecting various devices in your network infrastructure.
One of the notable features of this switch is its Power over Ethernet (PoE) budget of up to 370W, allowing you to power 12 PoE+ enabled devices or 24 PoE devices such as IP cameras or wireless access points without requiring additional power sources.
With a switching capacity of up to 216 Gbps, this switch ensures fast data transfer rates across all connected devices. It also boasts an impressive MAC address table size of 16,000 entries, enabling seamless communication between multiple clients in your network.
Cisco Catalyst WS-C2960XR-48LPS-I: 48x (PoE+ for 12, PoE for 24 with 370W power budget) Gigabit Ethernet ports and 4x SFP ports; Catalyst 2960-XR switch models include field-replaceable modular power supply and can accommodate a second power supply.
- Network Ports : 48x 1 Gigabit Ethernet (12x PoE+ 24x PoE)
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 1x Console Management RJ-45, 1x Fast Ethernet Management, 1x mini-USB Console (Type B), 2x USB (Type A)
- Stacking Ports : 1x Stacking Module Slot
- Stacking Options : C2960X-STACK Flex Stack Module - Not Included
- Stacking Cable Options : CAB-STK-E-0.5M, CAB-STK-E-1M, CAB-STK-E-3M - Not Included
- Switch Version : IP Lite
- Power Supplies Included : 1x PWR-C2-640WAC Included - 2x Slots
- Power Supply Options : PWR-C2-640WAC, PWR-C2-640WAC, PWR-C2-1025WAC, PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC
- PoE Budget : 370W (w/ Primary PSU), 640W (w/ Secondary PSU)
- Switching Capacity : 216 Gbps
- Forwarding Rate : 107.1 Mpps
- MAC Address Table Size : 16,000
- Model Number : WS-C2960XR-48LPS-I
- Part Number : WS-C2960XR-48LPS-I, WS-C2960XR-48LPS-I=, WS-C2960XR-48LPS-I-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco WS-C2960XR-48LPS-I 48x 1GB RJ-45 4x 1GB SFP Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
