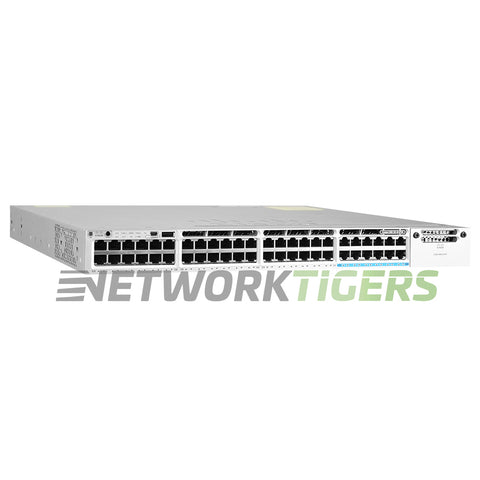

The Cisco WS-C3850-12X48UW-S switch is designed to meet the demands of modern networking environments. With 48 ports, including 12 multi-gigabit UPoE ports and a slot for additional modules, this switch offers flexibility and scalability for growing networks.
Featuring a PoE budget of 630W, it can power devices such as IP phones and wireless access points without extra power sources. With a switching capacity of 472 Gbps and a forwarding rate of up to 460 Mpps, this switch provides high-performance connectivity for data-intensive applications. Its MAC address table size supports up to 32,000 entries, ensuring efficient network traffic management.
Cisco Catalyst WS-C3850-12X48UW-S: Cisco Catalyst 3850 48x UPOE Ports with 12 100Mbps/1/2.5/5/10 Gbps (Stackable 48x 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU, IBP, 5x APL).
- Network Ports : 36x 1 Gigabit Ethernet RJ-45, 12x Multi Gigabit Ethernet (100M/1G/2.5G/5G/10G) UPOE RJ-45 - 5x APL)
- Management Ports : 1x RJ-45 Console, 1x Gigabit Management RJ-45, 1x USB (Type A), 1x USB (Mini Type A)
- Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors | Stacking bandwidth is 480 Gbps
- Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) - Cables sold separately
- Module Slots : 1x Expansion Module Slots - Modules are not included
- Module Options : C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G - Not Included
- Switch Version : IP Base
- Fan Module Options : 3x C3850-FAN-T1 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC 1100W PSU Included - 2x Total Slots
- Power Supply Options : PWR-C1-1100WAC, PWR-C1-1100WAC, PWR-C1-715WAC
- PoE Budget : 630W
- Switching Capacity : 472 Gbps
- Forwarding Rate : 460 Mpps
- MAC Address Table Size : 32,000
- Model Number : WS-C3850-12X48UW-S
- Part Number : WS-C3850-12X48UW-S, WS-C3850-12X48UW-S=, WS-C3850-12X48UW-S-WS
- Condition : New
- One (1) NEW Cisco WS-C3850-12X48UW-S 48x (12x MultiGB) UPoE RJ-45 1x Slot Switch w/ 5x APL as described above
