The Cisco WS-C3850-48F-S Catalyst 3850 is a versatile switch for high-performance networks. It features 48x 1GB PoE+ RJ-45 ports and one module slot, allowing for flexible expansion options.
One standout feature of this switch is its impressive PoE budget of 800W on one power supply. The generous MAC address table size can accommodate up to 32,000 entries, ensuring smooth communication between connected devices
The Cisco Catalyst offers a switching capacity of up to 176 Gbps and a forwarding rate of approximately 130.95 Mpps (million packets per second). This allows for smooth data transmission even in demanding environments with heavy network traffic.

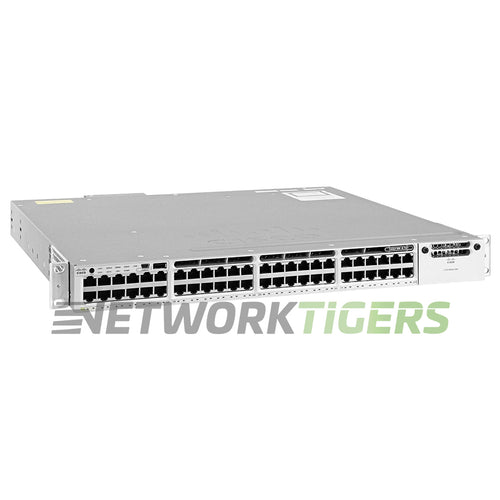

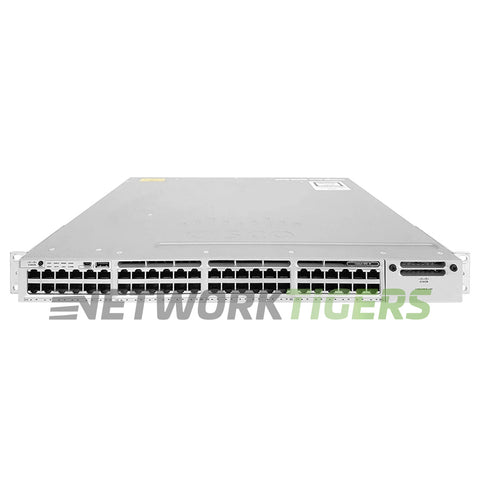

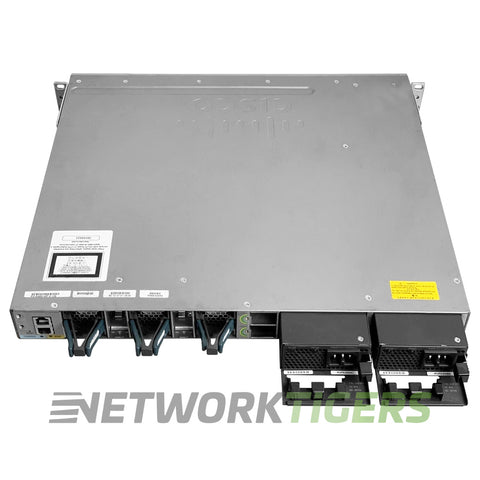

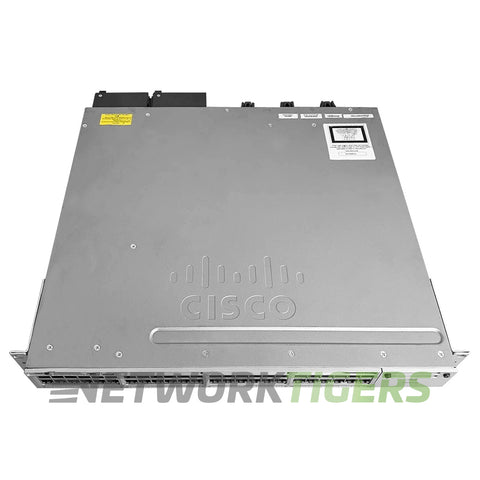

Cisco WS-C3850-48F-S Catalyst 3850 48x 1GB PoE+ RJ-45 1x Module Slot Switch
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
- Management Ports : 1x USB Type A, 1x Console Mini USB Type B, 1x RS-232 RJ-45 Management, 1x Gigabit Ethernet Management
- Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately
- Stacking Options : Stacking bandwidth is 480 Gbps
- Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise)
- Module Slots : 1x Expansion Module Slots - Modules are not included
- Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+), C3850-NM-4-10G (4x 10GB SFP+)
- Switch Version : IP Base Version
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x C3850-FAN-T1 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC - 1100W AC Power Supply Included - 2x Slots (Dual Capable) - 2nd Power Supply Sold Separately
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC
- PoE Budget : 800W
- Switching Capacity : 176 GBps
- Forwarding Rate : 130.95 Mpps
- MAC Address Table Size : 32,000
- Model Number : WS-C3850-48F-S
- Part Number : WS-C3850-48F-S, WS-C3850-48F-S=, WS-C3850-48F-S-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco WS-C3850-48F-S Catalyst 3850 48x 1GB PoE+ RJ-45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
