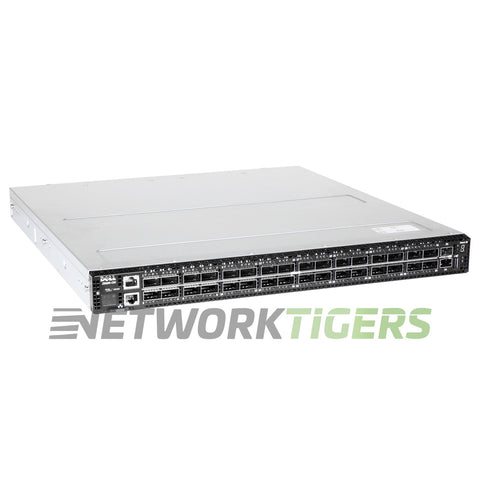

The Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 switch offers a switching capacity of 6.4 Tbps and a forwarding rate of 4400 Mpps in full duplex mode. With a MAC address table size of up to 136,000 entries and latency below sub-500ns, this front-to-back air OS10 switch is designed for high-performance data center networking environments.
Built with reliability and speed in mind, the Dell Z9100-ON enables efficient data transmission at scale without compromise. Its advanced features make it ideal for demanding network infrastructures requiring fast packet processing capabilities.
Overall, the Dell Z9100-ON EMC Z-Series switch provides seamless connectivity solutions tailored to meet the needs of modern businesses seeking optimal performance in their networking operations.|
Dell Z9100-ON: 32x 100 Gigabit Ethernet QSFP28 switch with 6.4 Tbps switching capacity. Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal).
- Network Ports : 32x 100 Gigabit Ethernet QSFP28
- Uplink Ports : 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
- Switch Version : Includes OS10
- System Memory : 8GB (CPU)
- AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
- Fan Modules : 5x Fan Subsystems Included
- Power Supplies : 2x AC Power Supplies Included
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 4400 Mpps (Full Duplex)
- MAC Address Table Size : 136,000
- IPv4 Unicast routes : 136K
- IPv6 Unicast routes : 68K
- IPv4 Multicast routes : 68K
- Packet Buffer : 16MB
- Latency : Sub 500ns
- Model Number : Z9100-ON
- Part Number : Z9100-ON
- Condition : New
- One (1) NEW Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 Front-to-Back Air OS10 Switch as described above
