The Dell Z9100-ON EMC Z-Series Switch is a high-performance network switch for data centers and enterprise environments. With a switching capacity of 6.4 Tbps, this switch provides excellent performance to handle heavy network traffic.
Equipped with 32x 100GB QSFP28 input/output ports, the Z9100-ON enables fast connections between devices within your network setup. The MAC address table size can accommodate up to 136,000 entries, ensuring efficient routing and management of connected devices.
With sub-500ns latency and a forwarding rate of 4400 Mpps (Full Duplex), this switch ensures minimal delays in transmitting data packets across networks.
Dell Z9100-ON: 32x 100 Gigabit Ethernet QSFP28 switch with 6.4 Tbps switching capacity. Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal).
- Network Ports : 32x 100 Gigabit Ethernet QSFP28
- Uplink Ports : 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
- Switch Version : Does NOT include OS10
- AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
- Fan Modules : 5x Fan Subsystems Included
- Power Supplies : 2x AC Power Supplies Included
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 4400 Mpps (Full Duplex)
- MAC Address Table Size : 136,000
- IPv4 Unicast routes : 136K
- IPv6 Unicast routes : 68K
- Multicast Routes : 68K (PIv4)
- VLANs Supported : 4K per port (Layer 2), Standalone 1K/VLT 4K (Layer 3)
- Packet Buffer : 6MB
- Latency : Sub 500ns
- CPU : CPU memory = 8GB
- Model Number : Z9100-ON
- Part Number : Z9100-ON
- Condition : New

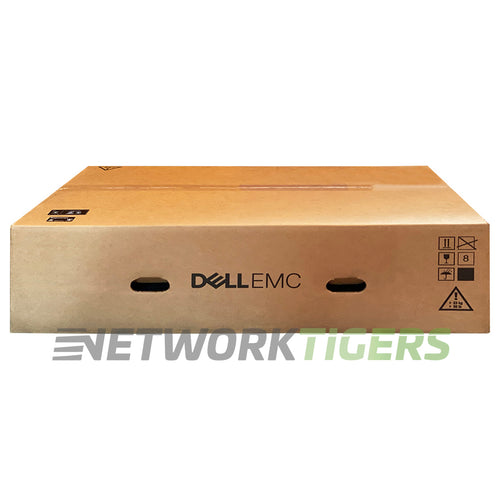

- One (1) NEW Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 F-B Air (No OS10 Licence) Switch as described above
