The Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Airflow OS10 Switch is designed for high-performance data centers. Its front-to-back airflow design ensures efficient cooling to maintain optimal performance levels.
The switch features 64 ports and supports QSFP28 connections, making it ideal for large-scale networking environments. With the use of OS10 operating system, this switch provides reliable network management capabilities. It offers a robust solution for demanding network setups that require fast and stable connectivity.

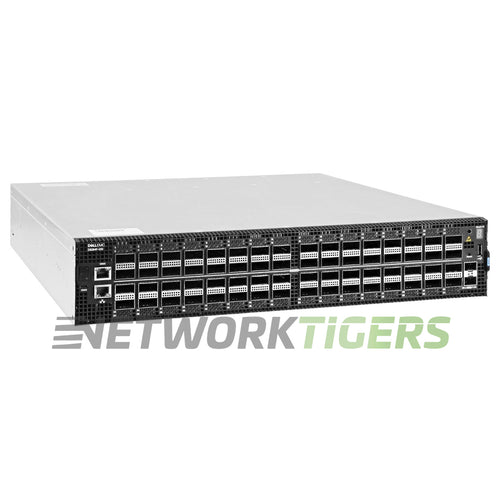

Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Airflow OS10 Switch
- Network Ports : 64x 100 Gigabit Ethernet QSFP28 - up to 128 ports of 10/25/40/50GbE ports (using breakout cable)
- Port Speeds : Multi-rate 100GbE ports support 10/25/40/50/100GbE
- Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
- Switch Version : OS10 Included
- AirFlow Direction : Front-to-Back Airflow (I/O Panel - PSU Airflow / Normal Airflow)
- Fan Modules : 4x Fan Modules
- Power Supplies : 2x AC Power Supplies included
- Switching Capacity : 12.8 Tbps
- Forwarding Rate : 2900 Mpps
- MAC Address Table Size : 160,000
- IPv4 Routes : 128K
- IPv6 Routes : 64K
- Alternative Dell Part Numbers : Z9264F-ON-RA, Z9264F-ON RA
- Multicast Hosts : 32K
- VLANs Supported : 4,000
- Packet Buffer : 42MB
- Latency : 300ns
- CPU Memory : 16GB
- Model Number : Z9264F-ON
- Part Number : Z9264F-ON
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Airflow OS10 Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
