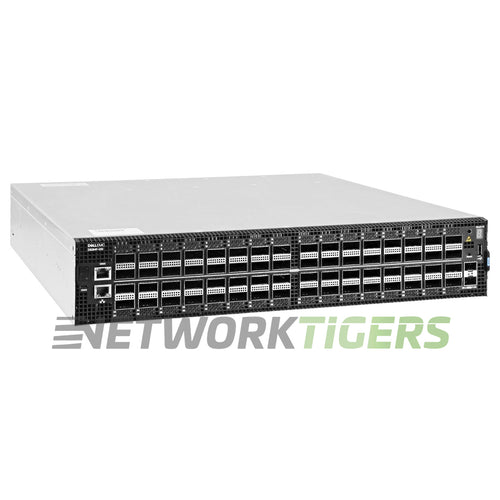

The Dell Z9264F-ON EMC Z-Series is a high-performance switch designed to meet the demands of modern data centers. With its 64 ports supporting QSFP28 connectors, it offers fast and reliable connectivity for your network infrastructure.
This switch has an impressive switching capacity of 12.8 Tbps, ensuring efficient data transmission throughout your network. A forwarding rate of 2900 Mpps allows for rapid delivery of packets without compromising performance.
This switch boasts an incredibly low delay of just 300ns, making it ideal for applications requiring real-time responsiveness.
Dell Z9264F-ON: 64x 100GbE QSFP28, 2x AC PSU, Fan module. Front-to-Back Airflow (I/O Panel - PSU Airflow / Normal Airflow). OS10 is not included.
- Network Ports : 64x 100 Gigabit Ethernet QSFP28
- Port Speeds : Multi-rate 100GbE ports support 10/25/40/50/100GbE
- Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
- Switch Version : OS10 is NOT included
- AirFlow Direction : Front-to-Back Airflow (I/O Panel - PSU Airflow / Normal Airflow)
- Fan Modules : 4x Fan Modules
- Power Supplies : 2x AC Power Supplies included
- Switching Capacity : 12.8 Tbps
- Forwarding Rate : 2900 Mpps
- MAC Address Table Size : 160,000
- IPv4 Routes : 128K
- IPv6 Routes : 64K
- Alternative Dell Part Numbers : Z9264F-ON-RA, Z9264F-ON RA
- Multicast Hosts : 32K
- VLANs Supported : 4,000
- Packet Buffer : 42MB
- Latency : 300ns
- CPU Memory : 16GB
- Model Number : Z9264F-ON
- Part Number : Z9264F-ON
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 F-B Air (No OS10 Licence) Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
