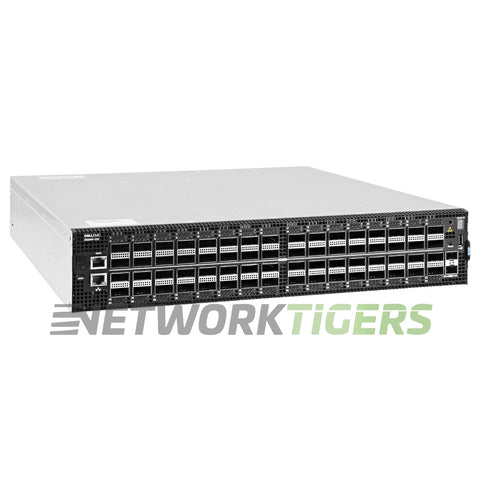

NEW Dell Z9264F-ON 64x 100GB QSFP28 F-B Air (No OS10 Licence) Switch
New

NEW Dell Z9264F-ON 64x 100GB QSFP28 F-B Air (No OS10 Licence) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9928

Overview

The NEW Dell Z9264F-ON switch offers high performance with a switching capacity of 12.8 Tbps and a forwarding rate of 2900 Mpps, making it suitable for demanding networking environments. With a MAC address table size of 160,000 and low latency at just 300ns, this switch provides efficient data processing.

The inclusion of 64x QSFP28 F-B Air ports ensures fast connectivity options for various network setups. Designed without an OS10 license requirement, the focus is on providing robust hardware capabilities for seamless integration into existing infrastructure. Whether looking to expand or upgrade your network environment, the Dell Z9264F-ON switch delivers reliable performance without compromising speed or efficiency.

NEW Dell Z9264F-ON 64x 100GB QSFP28 F-B Air (No OS10 Licence) Switch


Specifications

  • Network Ports : 64x 100 Gigabit Ethernet QSFP28
  • Port Speeds : Multi-rate 100GbE ports support 10/25/40/50/100GbE
  • Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
  • Switch Version : OS10 is NOT included
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel - PSU Airflow / Normal Airflow)
  • Fan Modules : 4x Fan Modules
  • Power Supplies : 2x AC Power Supplies included
  • Switching Capacity : 12.8 Tbps
  • Forwarding Rate : 2900 Mpps
  • MAC Address Table Size : 160,000
  • IPv4 Routes : 128K
  • IPv6 Routes : 64K
  • Alternative Dell Part Numbers : Z9264F-ON-RA, Z9264F-ON RA
  • Multicast Hosts : 32K
  • VLANs Supported : 4,000
  • Packet Buffer : 42MB
  • Latency : 300ns
  • CPU Memory : 16GB
  • Model Number : Z9264F-ON
  • Part Number : Z9264F-ON
  • Condition : New


Included

  • One (1) NEW Dell Z9264F-ON 64x 100GB QSFP28 F-B Air (No OS10 Licence) Switch as described above
