NEW Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Air OS10 Switch
New

NEW Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

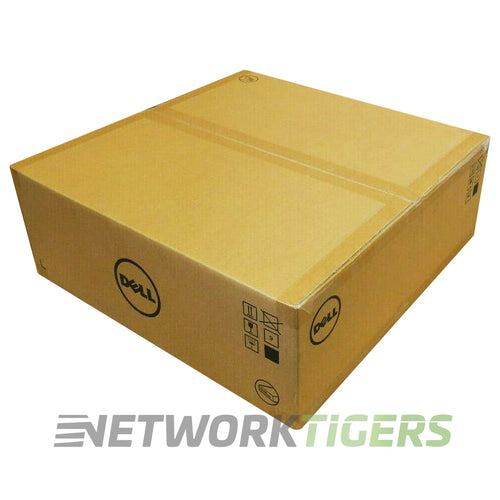

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3808

Overview

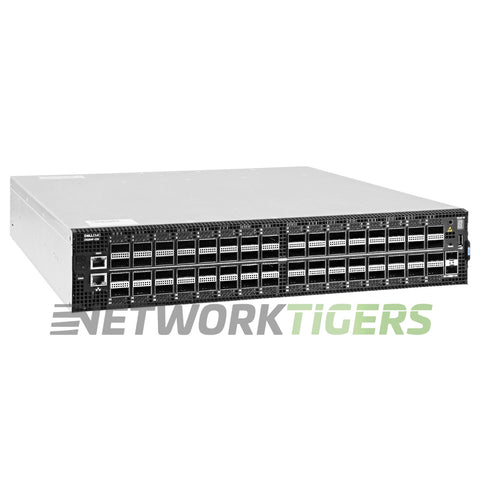

The NEW Dell Z9264F-ON EMC Z-Series switch offers high switching capacity of 12.8 Tbps and a forwarding rate of 2900 Mpps, making it suitable for demanding network environments. With its front-to-back airflow design, this switch ensures efficient cooling to maintain optimal performance levels.

The MAC address table size of 160,000 allows for seamless connectivity in large-scale networks. Additionally, the low latency of just 300ns ensures fast data transfer speeds without compromising efficiency. Designed with OS10 software integration capabilities, this switch provides reliable networking solutions for modern IT infrastructures.

NEW Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Air OS10 Switch


Specifications

  • Network Ports : 64x 100 Gigabit Ethernet QSFP28
  • Port Speeds : Multi-rate 100GbE ports support 10/25/40/50/100GbE
  • Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
  • Switch Version : OS10 Included
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel - PSU Airflow / Normal Airflow)
  • Fan Modules : 4x Fan Modules
  • Power Supplies : 2x AC Power Supplies included
  • Switching Capacity : 12.8 Tbps
  • Forwarding Rate : 2900 Mpps
  • MAC Address Table Size : 160,000
  • IPv4 Routes : 128K
  • IPv6 Routes : 64K
  • Alternative Dell Part Numbers : Z9264F-ON-RA, Z9264F-ON RA
  • Multicast Hosts : 32K
  • VLANs Supported : 4,000
  • Packet Buffer : 42MB
  • Latency : 300ns
  • CPU Memory : 16GB
  • Model Number : Z9264F-ON
  • Part Number : Z9264F-ON
  • Condition : New


Included

  • One (1) NEW Dell Z9264F-ON EMC Z-Series 64x 100GB QSFP28 Front-to-Back Air OS10 Switch as described above
