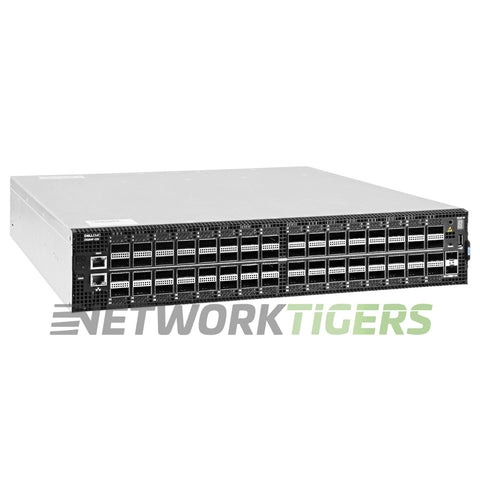

NEW Dell Z9264F-ON-RA EMC Z-Series 64x 100GB QSFP28 B-F Air (No OS10) Switch
New

NEW Dell Z9264F-ON-RA EMC Z-Series 64x 100GB QSFP28 B-F Air (No OS10) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9929
UPC: 011110666048

Overview

The NEW Dell Z9264F-ON-RA EMC Z-Series switch offers a switching capacity of 12.8 Tbps and a forwarding rate of 2900 Mpps, making it suitable for high-performance networking environments. With a MAC address table size of 160,000 and low latency at just 300ns, this switch can handle demanding workloads efficiently.

The inclusion of PoE budget support further enhances its versatility in various setups. Designed with QSFP28 B-F Air connectivity in mind, the Dell Z9264F-ON-RA is an effective solution for data centers or other network infrastructures requiring reliable performance without compromising speed or throughput capabilities.

NEW Dell Z9264F-ON-RA EMC Z-Series 64x 100GB QSFP28 B-F Air (No OS10) Switch


Specifications

  • Network Ports : 64x 100 Gigabit Ethernet QSFP28 - up to 128 ports of 10/25/40/50GbE ports (using breakout cable)
  • Port Speeds : Multi-rate 100GbE ports support 10/25/40/50/100GbE
  • Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
  • Switch Version : OS10 is NOT included
  • AirFlow Direction : Back-to-Front Airflow (PSU - I/O Panel Airflow / Reversed Airflow)
  • Fan Modules : 4x Fan Modules
  • Power Supplies : 2x AC Power Supplies included
  • Switching Capacity : 12.8 Tbps
  • Forwarding Rate : 2900 Mpps
  • MAC Address Table Size : 160,000
  • IPv4 Routes : 128K
  • IPv6 Routes : 64K
  • Alternative Dell Part Numbers : Z9264F-ON-RA, Z9264F-ON RA
  • Multicast Hosts : 32K
  • VLANs Supported : 4,000
  • Packet Buffer : 42MB
  • Latency : 300ns
  • CPU Memory : 16GB
  • Model Number : Z9264F-ON-RA
  • Part Number : Z9264F-ON-RA, Z9264F-ON RA
  • Condition : New


Included

  • One (1) NEW Dell Z9264F-ON-RA EMC Z-Series 64x 100GB QSFP28 B-F Air (No OS10) Switch as described above
