The Dell Z9664F-ON-RA Z-Series Switch offers a high switching capacity of 51.2Tbps (full duplex) and a forwarding rate of 10.2Bpps, making it suitable for demanding networking environments. With a MAC Address Table Size of 156K and latency below 850ns, this switch ensures efficient data processing with minimal delays.
Equipped with QSFP56-DD B-F Airflow OS10 technology, the Dell Z9664F-ON-RA provides reliable connectivity for large-scale network setups. Its compact design allows for easy integration into existing infrastructure without compromising performance.

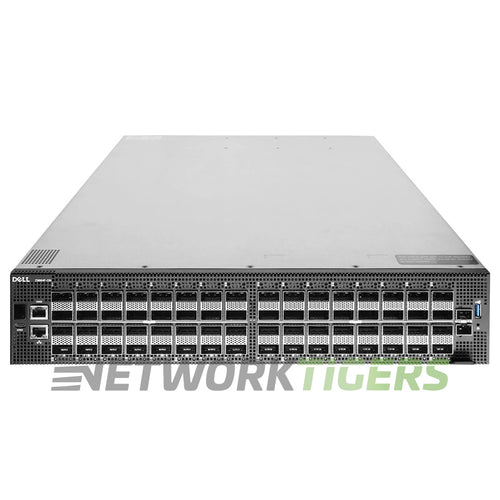

Dell Z9664F-ON-RA: Z-Series Switch with OS10 - 64x 400GB QSFP56-DD Back-to-Front Airflow.
- Network Ports : 64x 400 Gigabit Ethernet QSFP56-DD - can be used as a 10/25/40/50/100/200 switch via breakout cables for a maximum of 256 ports.
- Port Supported Speeds : 100/400GbE
- Management Ports : 1x USB C, 1x RJ-45 Console, 1x 1GB Ethernet Management RJ-45, 1x USB 3.0 Storage
- Switch Version : Dell SmartFabric OS10

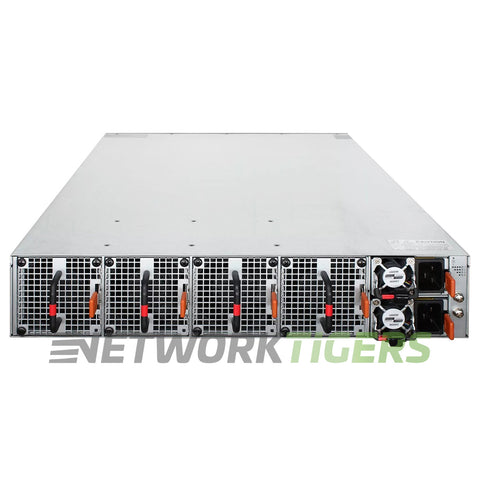

- AirFlow Direction : Back-to-Front Airflow - PSU to IO panel
- Fan Modules Included : 1x Fan Module Included - Back-to-Front Airflow
- Power Supplies Included : 2x AC PSU Included - Back-to-FrontAirflow
- Switching Capacity : 51.2Tbps (full duplex)
- Forwarding Rate : 10.2Bpps
- MAC Address Table Size : 156K
- Max IPv4 Host Entries : up to 400K (ALPM)
- Multicast routes : 4K
- Virtual interfaces (VLANs) : 4000
- Packet Buffer : 113.66 MB
- Latency : sub 850ns
- Model Number : Z9664F-ON-RA
- Part Number : Z9664F-ON-RA
- Condition : Seller refurbished
- One (1) Seller refurbished Dell Z9664F-ON-RA Z-Series 64x 400GB QSFP56-DD B-F Airflow OS10 Switch as described above
- Two (2) Power Cords Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
