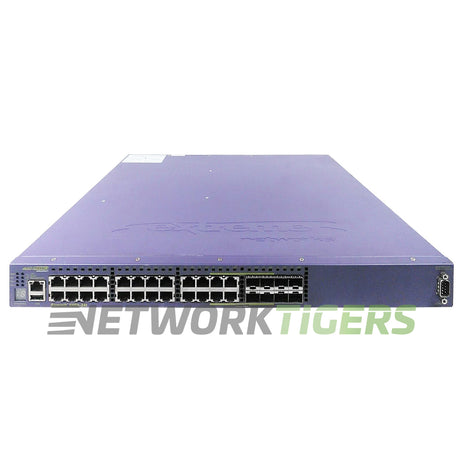

Extreme 16716 X460-G2-24t-GE4 24x 1GB RJ-45 8x 1GB SFP 1x VIM Slot Switch

Extreme 16716 X460-G2-24t-GE4 24x 1GB RJ-45 8x 1GB SFP 1x VIM Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9334
UPC: 644728167166

Overview

The Extreme 16716 X460-G2-24t-GE4 switch is a powerful networking solution suitable for various applications. Its 24x 1GB RJ45 ports offer reliable connectivity options for your devices. The switch has eight SFP slots that provide additional flexibility and scalability.

Featuring a switching capacity of 224 Gbps and a forwarding rate of up to 166.7 Mpps, this switch ensures efficient data transmission without any bottlenecks or latency issues.

One notable aspect is the generous MAC address table size, which supports up to Layer two/MAC addresses:96K (98,304). This enables smooth communication between connected devices within your network.

The inclusion of one VIM slot allows you to add expansion modules according to your specific requirements in order to enhance functionality further if needed.

Extreme 16716: 24x 10/100/1000BASE-T, 8x 100/1000BASE-X unpopulated SFP (4x SFP ports shared with 10/ 100/ 1000BASE-T ports), 4x 1GBase-X unpopulated SFP ports, Rear VIM Slot (unpopulated), Rear Timing Slot (unpopulated), 2x unpopulated PSU slots, fan module slot (unpopulated).


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet RJ-45
  • Uplink Ports : 8x 1 Gigabit Ethernet SFP
  • Management Ports : 1x Serial Console, 1x USB, 1x Out of Band Management
  • Stacking Ports : Stacking possible through the use of the 16713 module which includes 2x 40GB SummitStack ports or the 16710 module (2x 40GBASE-X) - neither module is included
  • Stacking Options : Up to eight X460-G2 switches can be stacked using three different methods of stacking - SummitStack, SummitStack-V or SummitStack-V160
  • Stacking Cable Options : 16106 (0.5m), 16107 (1.5m), 16108 (3m), 16105 (5m) - none included
  • Module Slots : 1x VIM slot, 1x Rear Timing Slot,
  • Module Options : 16710 (2x 40GBASE-X), 16711 (2x 10GBASE-X), 16712 (2x 10GBASE-T), 16713 (2x Extreme SummitStack), 16715 (Timing Module)
  • Switch Version : ExtremeXOS Advanced Edge license with EXOS Release 22.1 or greater (earlier releases include an Edge license only).
  • AirFlow Direction : Depends on fan and PSU configuration - see below.
  • Fan Module Options : 1x Fan Module Slot - unpopulated - Fan Modules ordered separately - Option are 10945 (F-B) and 10946 (B-F)
  • Power Supplies Included : 2x PSU Slots - unpopluated - PSU's ordered separately.
  • Power Supply Options : 10941 (1100W F-B), 10942 (1100W B-F), 10951 (715W F-B), 10952 (715W B-F), 10930A (300W Ext Temp), 10953 (350W F-B), 10954 (350W B-F), 10943 (300W B-F)
  • VLAN/ VMANs : 4096
  • Switching Capacity : 224 Gbps
  • Forwarding Rate : 166.7 Mpps
  • MAC Address Table Size : 96K (98,304)
  • Latency : Less than 4 microsecond latency (64-byte)
  • Layer 2/ MAC Addresses : 96K (98,304)
  • Model Number : 16716
  • Part Number : 16716, X460-G2-24t-GE4
  • Condition : Seller refurbished

Datasheet

More information on this Extreme 16716.

Included

  • One (1) Seller Refurbished Extreme 16716 X460-G2-24t-GE4 24x 1GB RJ-45 8x 1GB SFP 1x VIM Slot Switch as described above
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Cord Not Included
  • Power Supplies Not Included
  • Fan Modules Not Included
  • Transceiver Modules Not Included
  • Network Modules Not Included
