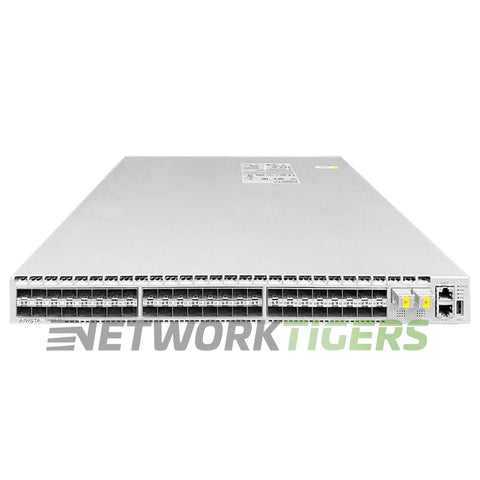

NEW Arista DCS-7280SE-72-F 48x 10GB SFP+ 2x 100GB MXP Front-to-Back Air Switch
New

NEW Arista DCS-7280SE-72-F 48x 10GB SFP+ 2x 100GB MXP Front-to-Back Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2427

Overview

The NEW Arista DCS-7280SE-72-F is a high-performance network switch equipped with 48 x 10Gb SFP+ ports and 2 x 100Gb MXP uplinks. It delivers a switching capacity of up to 1.44 Tbps and maintains forwarding rates at an efficient level of up to 900 million packets per second (Mpps).

Its low latency, measured at just 3.8 microseconds, enhances data transfer efficiency in applications requiring quick packet delivery times. The device supports MAC address table sizes reaching up to 256,000 entries for robust scalability in large networks or dense traffic environments.

Designed with front-to-back airflow cooling infrastructure suitable for single-direction air management systems or rack configurations that require it specifically toward the Front-row Air Management specs parameters.

NEW Arista DCS-7280SE-72-F 48x 10GB SFP+ 2x 100GB MXP Front-to-Back Air Switch


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 2x 100 Gigabit Ethernet Multimode MXP
  • Management Ports : 1x RJ45 Console port, 1x Gigabit Ethernet Management port, 1x USB port
  • VLAN ID's : 4096
  • Packet Buffer : 9GB
  • CPU : Quad-Core x86
  • AirFlow Direction : Front to Rear Airflow
  • Fan Module Options : 4x FAN-7000-F Fan Modules Included (N+1 redundant)
  • Power Supplies Included : 2x PWR-500AC-F Power Supplies Included (AC)
  • Switching Capacity : 1.44 Tbps
  • Forwarding Rate : 900 Mpps
  • MAC Address Table Size : 256,000
  • Latency : 3.8us
  • DRAM and Flash : 4GB DRAM, 4GB Flash
  • Model Number : DCS-7280SE-72-F
  • Part Number : DCS-7280SE-72-F
  • Condition : New


Included

  • One (1) NEW Arista DCS-7280SE-72-F 48x 10GB SFP+ 2x 100GB MXP Front-to-Back Air Switch as described above
