The Ruckus Brocade ICX7450-48P is a high-performance switch designed with 48x 1GB PoE+ RJ-45 ports and features three expansion module slots. With a high PoE budget of 1500W, this switch efficiently powers PoE+ capable connected devices.
This switch offers an impressive capacity of up to 336 Gbps, enabling seamless data transfer across your network. The forwarding rate of the ICX7450-48P reaches up to 250 Mpps, ensuring fast and reliable communication within your infrastructure.
With a MAC address table size of 32,768 entries, this switch can handle large-scale networks while maintaining optimal performance levels.

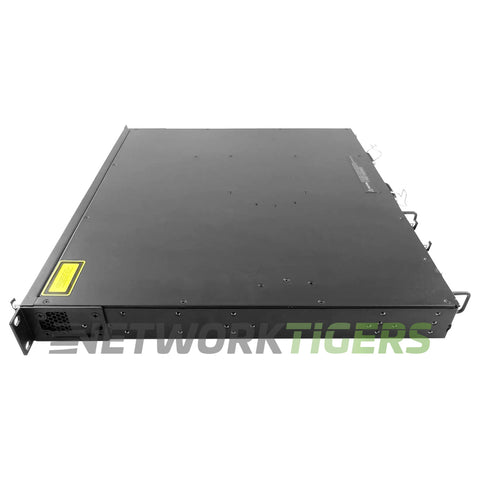

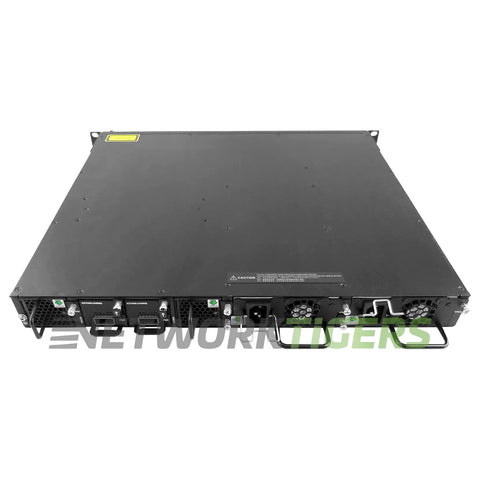

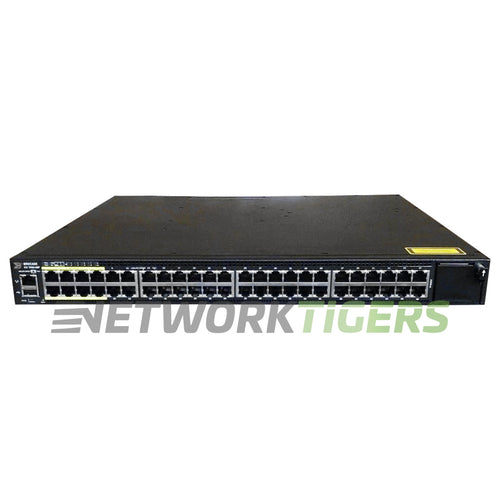

Ruckus Brocade ICX7450-48P 48x 1GB PoE+ RJ-45 3x Expansion Module Slots Switch
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : Uplink ports are added through the use of uplink modules - modules are not included - See "Module Slots and Options'
- Management Ports : 1x Mini-USB RS232 Serial (Mini-B plug), 1x RJ-45 Gigabit Management, 1x USB
- Stacking Ports : Stacking is possible through the use of ICX7400-1X40GQ Module - Module not included - See "Expansion Modules Options"
- Stacking Options : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
- Module Slots : 3x Expansion Module Slots - None Included
- Module Options : ICX7400-4X1GF (4x 1GB SFP), ICX7400-4X10GF (4x 10GB SFP+), ICX7400-4X10GC (4x 10GB RJ-45), ICX7400-1X40GQ (1x 40GB Uplink/Stack), ICX7400-SERVICE-MOD (Service Module)
- AirFlow Direction : This switch does not include fans or PSU's. The airflow is decided by the choice of fans and PSU's. See below for options.
- Fan Module Options : 2x Fan Module Slots - Not Included - Options are ICX-FAN10-E (F-B Airflow), ICX-FAN10-I (B-F Airflow)
- Power Supplies Included : 2x PSU Slots - None Included
- Power Supply Options : RPS16-E (PoE 1,000W AC F-B Air), RPS16-I (PoE 1,000W AC B-F Air)
- PoE Budget : 1,500W (w/ 2x AC PSU's), 516W (w/ 2x DC PSU's)
- Switching Capacity : 336 Gbps
- Forwarding Rate : 250 Mpps
- MAC Address Table Size : 32,768
- Latency : 1.3 μs
- DRAM and Flash : 2 GB DRAM, 2GB Flash
- Model Number : ICX7450-48P
- Part Number : ICX7450-48P
- Condition : Seller refurbished
- One (1) Seller Refurbished Ruckus Brocade ICX7450-48P 48x 1GB PoE+ RJ-45 3x Expansion Module Slots Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Supply Not Included
- Network/Stack Modules Not Included
- Fan Modules Not Included
