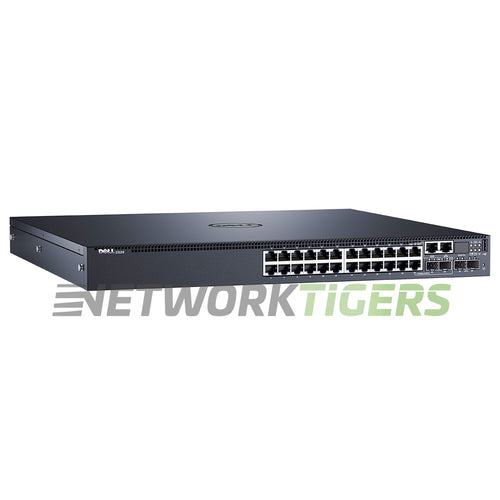

The Dell S3124 Switch, part number 210-AIMQ, is an efficient and reliable network switch with high performance. With a switching capacity of 212 Gbps and a forwarding rate of 158 Mpps, it can handle heavy data traffic without any issues.
This switch comes with various connectivity options including 24x1GB RJ-45 ports, 2x1GB combo ports (RJ-45/SFP), and two additional 10GB SFP+ slots for higher-speed connections. It also features front-to-back airflow design to ensure effective cooling.
With a built-in PoE budget, you can power your devices via Ethernet cables, making installation easier. The MAC Address Table Size is impressive at 56,000 addresses (80K in L2 scaled mode).
Dell S3124: L3, 24x 1GbE, 2xCombo, 2x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, 1x AC PSU.
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 2x 1 Gigabit Ethernet Combo (SFP/RJ-45), 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x USB
- Stacking Ports : 2x Built in Stacking Ports (Rear of Switch)
- Module Slots : 1x Hot swappable expansion module slot - supporting dual-port SFP+ or dual-port 10GBaseT (Module not included)
- Product Family : EMC S-Series
- AirFlow Direction : Front-to-Back Airflow (IO to PSU Airflow - Normal Airflow)
- Fan Module Options : Redundant variable speed fans
- Power Supplies Included : 2x PSU Slots - 1x 200W AC PSU Included
- Alternative Dell Part Numbers : 210-AIMQ
- Switching Capacity : 212 Gbps
- Forwarding Rate : 158 Mpps
- MAC Address Table Size : 56,000 (80K in L2 scaled mode)
- Model Number : S3124
- Part Number : S3124, 210-AIMQ
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell S3124 24x 1GB RJ-45 2x 1GB Combo 2x 10GB SFP+ F-B Airflow 210-AIMQ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
- Rack Mount Rails Not Included
